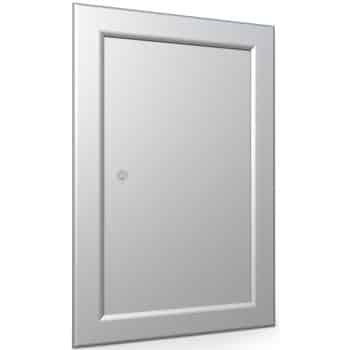

Kamouflage MP 1V120

Motorised, aesthetic and CE marked smoke control shutter

The Kamouflage MP is a motorised, aesthetic and CE marked smoke control shutter that can be perfectly integrated in many smoke control systems.

Available dimensions (Hn/Wn): 350×385 mm > 700×1075 mm

Benefits:
  • Optimal smoke control shutter thanks to higher free air passage and minimal pressure loss
  • Easy to install thanks to optional mounting frame (EASY KAP ME/MP or EASY KGC ME/MP) and its light weight
  • Easy to finish thanks to removable front plate
  • Aesthetic solution that can be integrated in any interior design
  • Good thermal and acoustic insulation thanks to the double-walled door and seals
  • Simple operating tests through remote opening and resetting by an actuator
  • Fully integrable in the wall finish
  • Installation at minimal distances
Components:
  1. 1 shutter
  2. Aluminium frame
  3. Lock + key
  4. Connection compartment
  5. Actuating arm
  6. Operating mechanism
  7. Product identification
Features:
  • 1 shutter
  • Fire resistance till 120 minutes
Mechanisms:

Download Technical datasheet KIT

Mechanism for the smoke control shutters Avantage MP and Kamouflage MP. Remote controlled unlocking and resetting.

VARIANTS

  • VA MP MEC
    Mechanism for Avantage MP and Kamouflage MP

OPTIONS – MAGNET

  • VD24
    Natural magnet 24 V DC
  • FDCU
    Limit switch ‘open/closed’ (Incl. exc. for H model)
  • FDCB
    Auxiliary limit switch ‘open/closed’

UNLOCKING

  • manual unlocking
    with the key (delivered in the bag together with the installation guidelines)
  • automatic unlocking
    n/a
  • remote unlocking
    remote by connection of 24 V DC or 48 V DC

RESETTING

  • manual resetting
    turn the key 20° anti-clockwise. Push the actuating arm in the direction of the arrow and pull the shutter into its closed position. Turn the key 15° clockwise. The key blocks in the lock and the door can be pulled into its lock.
  • motorised resetting
    remote controlled by reversing (2-wire) control or alternating (3-wire) control of the voltage to the motor. After the unlocking or rearmament is complete, the voltage on the motor may be stopped.
